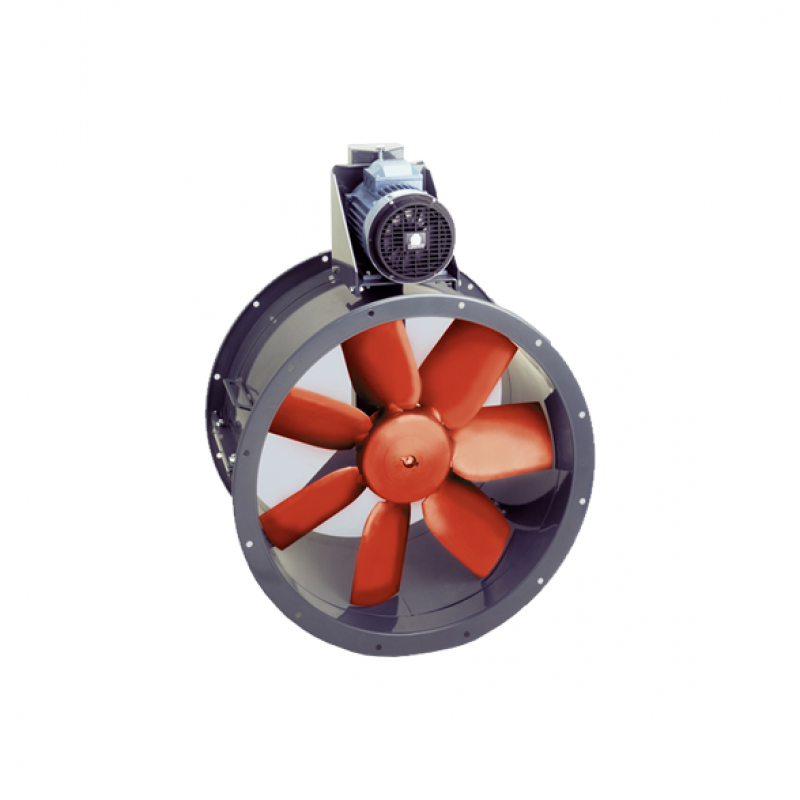

The Belt Drive Axial Cylindrical Cased Axial Flow Fan is a robust industrial ventilation solution designed for high-temperature and continuous-duty applications. Featuring a cylindrical casing with the motor positioned externally and out of the airstream, the fan ensures reliable operation even above 100°C. Its belt-driven aluminium impeller provides efficient airflow, while the enclosed industrial poly V belt and pulley system offer safe and durable power transmission. With IP55-rated motors, Class F insulation, and greased-for-life bearings, the Belt Drive Axial delivers dependable performance for demanding industrial environments.
Product Information
The Belt Drive Axial flow fan is designed for reliable high-temperature airflow in industrial and commercial ventilation systems. By positioning the motor outside of the airstream, it avoids exposure to hot, dusty, or contaminated air, extending motor life and reducing maintenance requirements.
The belt-driven aluminium impeller, paired with an industrial poly V belt and pulley system enclosed in a protective guard, ensures smooth, efficient airflow and safe operation. Standard three-phase electric motors (230/400V or 400V – 50Hz) are fitted with IP55 protection, Class F insulation, and greased-for-life bearings, allowing for long-term, continuous-duty operation.
The Belt Drive Axial is ideal for high-temperature process ventilation, industrial plants, manufacturing facilities, and commercial buildings requiring reliable airflow. With fan sizes ranging from 450ø to 1000ø, it suits both small and large-scale ducted systems, providing robust and consistent air movement for supply or extract applications.
Construction:
Cylindrical fan casing
Motor located externally, out of airstream
Drive System:
Belt-driven aluminium impeller
Industrial poly V belt and pulley system
Enclosed protective guard
Motor:
Three-phase standard (230/400V or 400V – 50Hz)
IP55 protection rating
Class F insulation
Greased-for-life bearings
Sizes:
450ø – 1000ø
Application:
Continuous-duty industrial and commercial ventilation
High-temperature supply and extract airflow
On Request
We offer a wide range of options and accessories to suit demanding applications, including enhanced corrosion resistance through paint or powder coating finishes and careful material selection. Available ancillaries include inlet and outlet ducting transitions, flexible connections, inline silencers, acoustic or thermal cladding, AV mounts, and inlet filter boxes. Motor options include high-efficiency IE4 AC motors, EC motors, UL-approved motors, and ATEX-certified solutions for Zones 1 & 21 and Zones 2 & 22 hazardous environments. Additional protection features such as increased ingress protection, weather cowls, and IP66-rated motors are also available to ensure reliable operation in challenging conditions.
