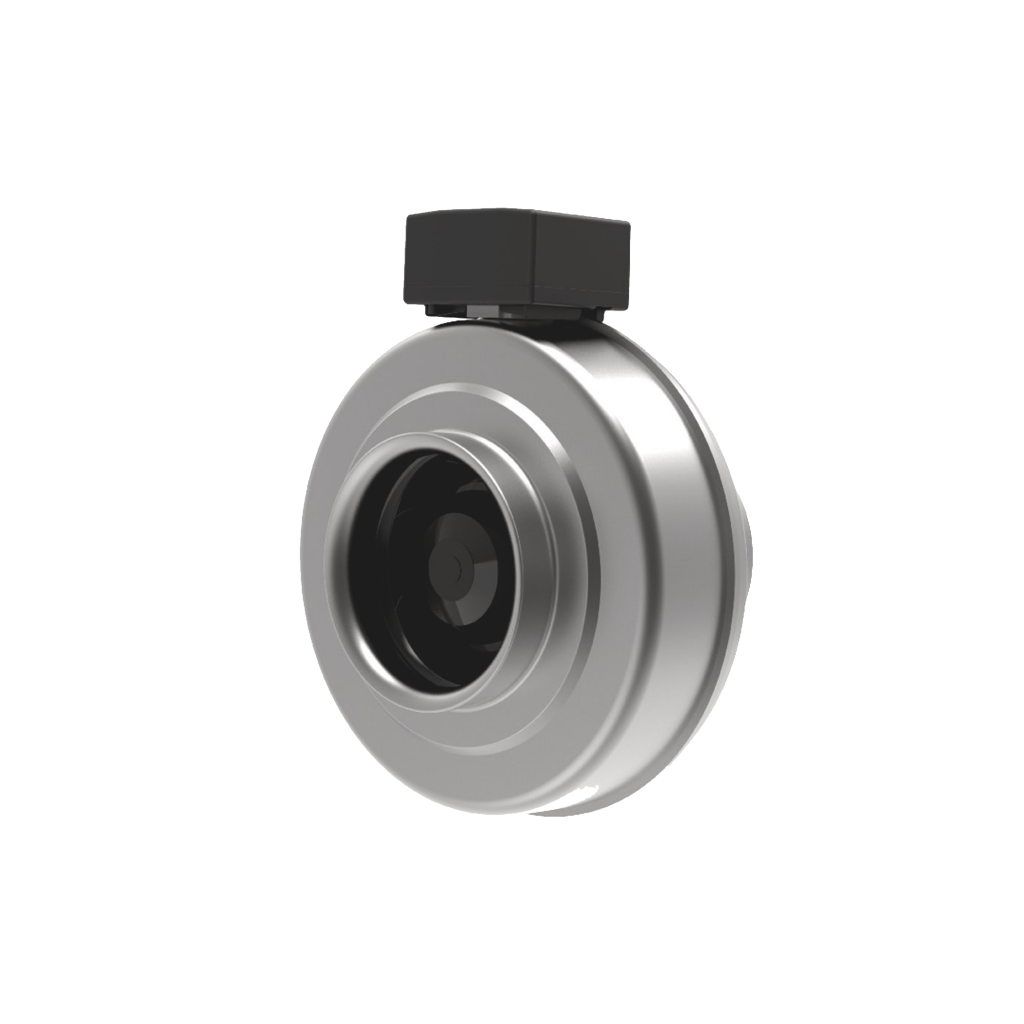

The Centrifugal Inline Duct Fan is a compact yet powerful ventilation solution designed for commercial and light industrial applications. Built for durability and reliable performance, this fan is ideal for workplace air extraction systems, machine extraction units, and other ducted ventilation needs. Featuring backward-curved impellers, it delivers efficient airflow at medium to high resistance, ensuring consistent performance even under demanding conditions. Its robust construction and straightforward installation make it a practical choice for systems requiring dependable air movement in commercial and industrial environments.
Product Information
The Centrifugal Inline Duct Fan is engineered for reliable airflow in commercial and industrial ducted systems. Its backward-curved impellers allow the fan to generate small to medium air volumes efficiently, even when operating against medium to high system resistance. This design reduces noise and improves energy efficiency compared to traditional axial alternatives.
The fan’s inlet and outlet connection couplings simplify integration with existing ventilation ducts, allowing quick installation and minimizing system downtime. Its compact footprint makes it suitable for constrained spaces while maintaining robust performance.
Market & Application Suitability
This fan range is ideal for commercial buildings, workshops, manufacturing plants, and other facilities requiring reliable air extraction. Common applications include workplace ventilation, machine extraction units, fume removal, and general air handling systems, making it a versatile solution for engineers and contractors seeking efficient, low-maintenance ducted airflow.
Configuration:
Centrifugal inline duct fan
Backward-curved impeller design
Construction:
Durable and robust housing
Compact footprint for easy installation
Performance Characteristics:
Small to medium air volumes at medium to high resistance
Connections:
Inlet and outlet coupling connections for duct integration
Application:
Commercial ventilation systems
Machine and workplace extraction units
On Request
We offer a wide range of options and accessories to suit demanding applications, including enhanced corrosion resistance through paint or powder coating finishes and careful material selection. Available ancillaries include inlet and outlet ducting transitions, flexible connections, inline silencers, acoustic or thermal cladding, AV mounts, and inlet filter boxes. Motor options include high-efficiency IE4 AC motors, EC motors, UL-approved motors, and ATEX-certified solutions for Zones 1 & 21 and Zones 2 & 22 hazardous environments. Additional protection features such as increased ingress protection, weather cowls, and IP66-rated motors are also available to ensure reliable operation in challenging conditions.
