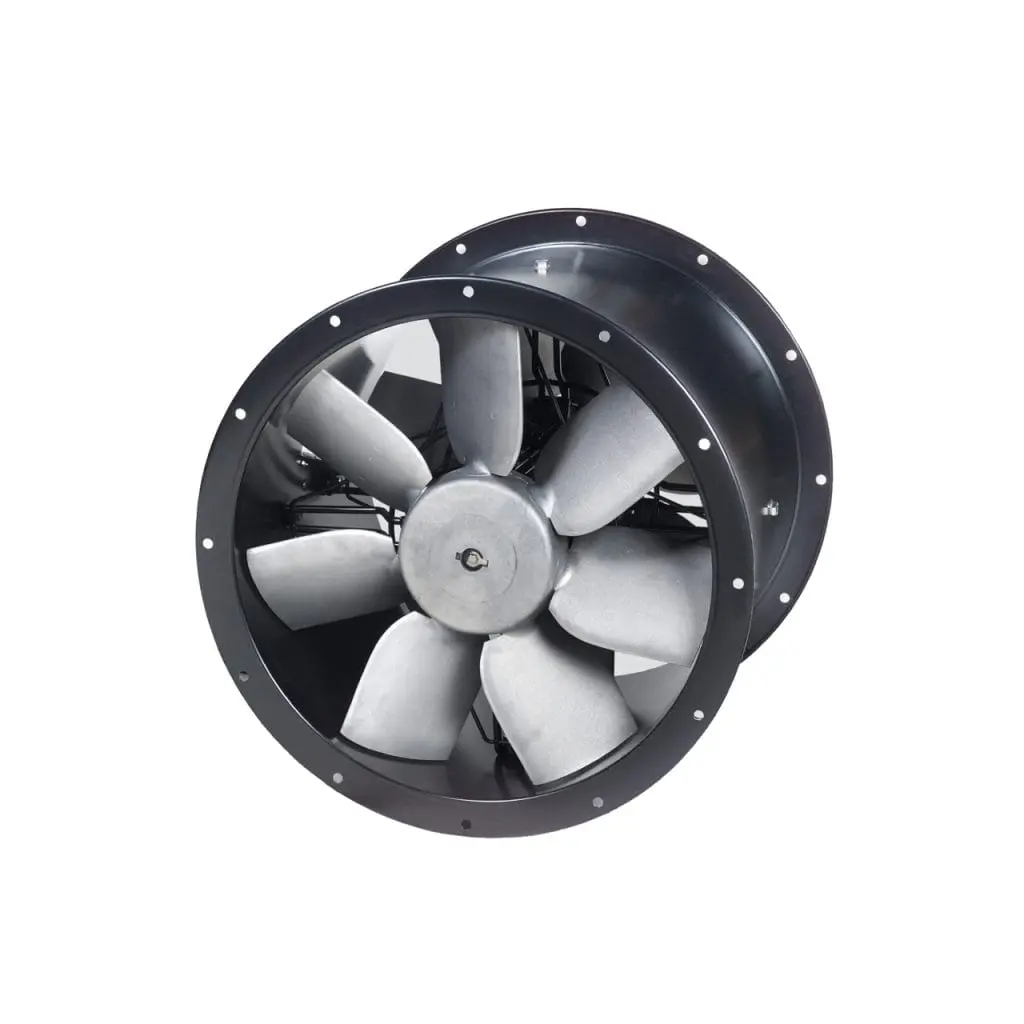

The TCBBx2 / TCBTx2 contra-rotating axial fan range is designed for high-efficiency airflow and enhanced pressure performance in demanding ventilation systems. Manufactured from high-grade rolled galvanised steel, the cylindrical casing is finished in durable black polyester paint for improved corrosion resistance and long service life.
Each fan is fitted with aluminium impellers and a pre-wired external junction box positioned on the outside of the casing for straightforward installation and maintenance. The contra-rotating design delivers improved airflow efficiency and higher pressure capability compared to standard axial fans, making them suitable for ducted applications where performance is critical.
The range is available with single-phase or three-phase motors, offering 2, 4, or 6 pole options depending on model size. Smaller models (250–400ø) use external rotor motors with IP54 protection, Class F insulation, and integrated thermal protection, suitable for operating temperatures from -40°C to +40°C. Larger models (450–710ø) feature IP65 motors with Class F insulation and thermal protection, with an extended operating range up to -40°C to +70°C.
Product Information
The Contra Rotating TCBBx2 / TCBTx2 axial fan range is designed for high-efficiency air movement in demanding ventilation applications. Featuring a cylindrical cased construction manufactured from high-grade rolled galvanised steel and finished in durable black polyester paint, these fans deliver robust performance with enhanced corrosion resistance.
Each unit is fitted with high-performance aluminium impellers and supplied with a pre-wired external terminal/junction box mounted on the outside of the fan casing for simplified installation and maintenance access. The contra-rotating impeller system significantly improves pressure development and airflow efficiency compared to conventional single-impeller axial fans.
Available in single-phase and three-phase motor configurations, the range supports multiple pole options (2, 4, or 6 pole depending on model), allowing flexible speed and performance matching to system requirements.
The TCBBx2 / TCBTx2 range is ideal for commercial, industrial, and process ventilation systems requiring higher pressure capability and efficient ducted airflow. Suitable for both supply and extract applications, these fans are commonly used in warehouses, manufacturing plants, mechanical ventilation systems, and temperature-controlled environments where reliable, continuous operation is required.
Cylindrical cased fan housing
High-grade rolled galvanised steel body
Durable black polyester powder-coated finish
Aluminium impellers for strength and efficiency
External pre-wired junction box for easy electrical connection
Single or three-phase electric motors available
2, 4, or 6 pole options (model dependent)
Models 250, 315, 355, and 400ø: External rotor motors, IP54, Class F insulation with thermal protection
Models 450, 500, 560, 630, and 710ø (6 pole): IP65, Class F insulation with thermal protection
Operating temperature range: -40°C to +40°C (standard models) / -40°C to +70°C (high-temp rated models)
All models are speed controllable via auto transformer (except 4-560, 4-630, 710, and 800ø variants)
All three-phase motors are inverter (VSD) compatible for variable speed control
250ø – 800ø
Continuous-duty industrial and commercial ventilation
High-efficiency ducted supply and extract systems
High-pressure airflow applications in HVAC and process ventilation
Temperature-controlled and mechanically demanding environments
On Request
We offer a wide range of options and accessories to suit demanding applications, including enhanced corrosion resistance through paint or powder coating finishes and careful material selection. Available ancillaries include inlet and outlet ducting transitions, flexible connections, inline silencers, acoustic or thermal cladding, AV mounts, and inlet filter boxes. Motor options include high-efficiency IE4 AC motors, EC motors, UL-approved motors, and ATEX-certified solutions for Zones 1 & 21 and Zones 2 & 22 hazardous environments. Additional protection features such as increased ingress protection, weather cowls, and IP66-rated motors are also available to ensure reliable operation in challenging conditions.
